Flammable vapour zone
The annular seal space can contain product vapour and air, especially where seals are worn, damaged or poorly fitted.
Early detection and localised protection for floating-roof tank rim-seal hazards
Rim Seal Fire Protection Systems in Mumbai & Across India
Tank survey, detection, control and release logic, foam or approved agent application, hazardous-area coordination, testing and maintenance.
What is a rim seal fire protection system?
A rim seal fire protection system is a project-specific arrangement that detects and controls a fire in the annular seal area between an external floating roof and the storage-tank shell, commonly using foam or another approved agent.
The system is designed around the actual roof, primary and secondary seal arrangement, rim geometry, stored product, hazardous-area classification and site fire strategy. It may be a fixed foam system, a modular automatic local-application system or a coordinated combination.
Reliance Fire Protection Systems supports survey, design coordination, supply, installation, testing, commissioning and maintenance from Mumbai for tank farms and industrial projects across India.

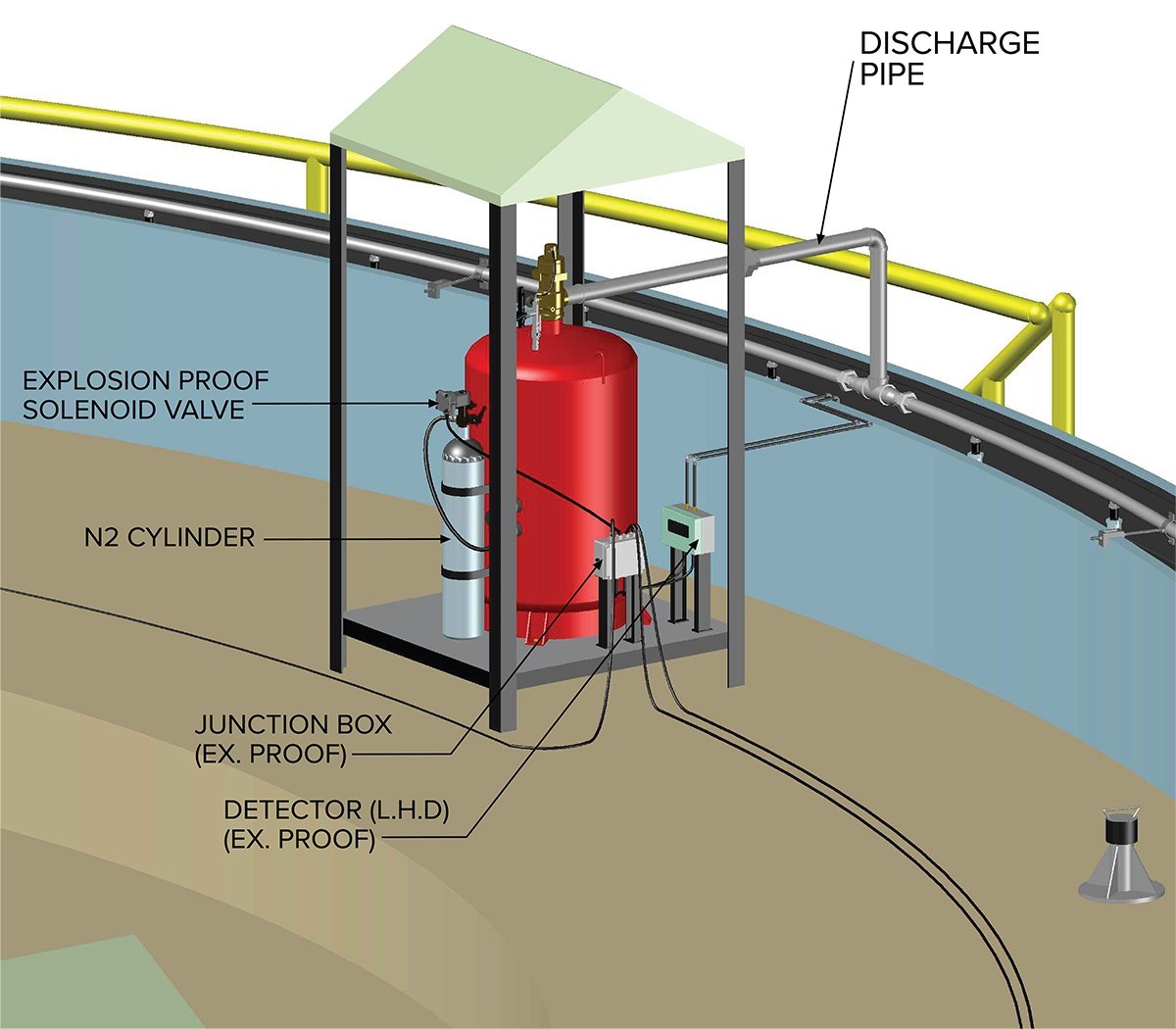

Illustrative configuration only; actual equipment, agent and arrangement must follow the approved tank-specific design.
Why the Rim Seal Area Needs Protection
Potential ignition sources
Lightning, static discharge, electrical faults, hot work and mechanical conditions must be addressed by prevention and protection measures.
Restricted access
A fire on a floating roof can be difficult and dangerous to approach, making early alarm and prompt local application important.
Escalation potential
An uncontrolled rim fire can damage seals, roof components or tank systems and may develop beyond the original annular area.
Moving geometry
The roof travels with product level, so piping, detectors, cables and discharge devices must accommodate all operating positions.
Harsh environment
Weather, corrosion, product vapour, vibration and hazardous-area conditions affect equipment selection and service life.
Typical Rim Seal System Elements
Fire detection
Approved linear heat, flame or other detection arranged to identify a local event around the tank circumference.
Control and release logic
Alarm, confirmation, shutdown and release functions coordinated with the site fire alarm and emergency-response philosophy.
Foam or suppression supply
Concentrate, premix or approved agent stored and sized for the selected application method and required duration.
Distribution arrangement
Valves, piping and discharge devices positioned to deliver agent into the protected annular zone without obstructing roof movement.
Hazardous-area equipment
Enclosures, solenoids, detectors, junction boxes and wiring selected for the documented electrical area classification.
Supervision and manual facilities
Pressure, power, fault or release supervision plus manual initiation, isolation and test provisions defined by the design.
How an Automatic Rim Seal System Operates
Design references: NFPA 11 covers the design, installation, operation, testing and maintenance of foam systems when adopted. API 650 addresses welded oil-storage tanks and floating-roof construction. The project must use the applicable Indian requirements, petroleum authority conditions, insurer criteria and approved engineering basis.
Information Required for Design
Tank and roof details
Diameter, height, external floating-roof type, roof travel, pontoon arrangement, drainage and access.
Seal and rim geometry
Primary and secondary seal construction, annular width, foam dam, obstructions and available mounting clearances.
Stored product
Fuel properties, water miscibility, operating temperature, vapour conditions and compatible approved foam concentrate.
Fire-water and foam resources
Tank, pump, pressure, concentrate, proportioning, application devices, backup stocks and simultaneous demand.
Electrical and control interfaces
Area classification, power, fire alarm, emergency shutdown, remote indication, cabling route and lightning protection interfaces.
Operations and maintenance
Filling cycles, roof access, inspection intervals, testing restrictions, corrosion conditions and emergency-response capability.
Scope limitation: Rim-seal protection addresses a defined annular fire scenario. It does not replace provisions for full-surface tank fires, bund or dyke fires, tank cooling, exposure protection, hydrants, monitors, foam stocks, drainage, lightning and static control, trained response or the wider tank-farm emergency plan.
Rim Seal Fire Protection Across India
Project enquiries are supported across all Indian states and union territories, subject to tank details, stored-product hazards, site survey, system engineering and approval requirements.
Andhra PradeshArunachal PradeshAssamBiharChhattisgarhGoaGujaratHaryanaHimachal PradeshJharkhandKarnatakaKeralaMadhya PradeshMaharashtraManipurMeghalayaMizoramNagalandOdishaPunjabRajasthanSikkimTamil NaduTelanganaTripuraUttar PradeshUttarakhandWest BengalAndaman and Nicobar IslandsChandigarhDadra and Nagar Haveli and Daman and DiuDelhiJammu and KashmirLadakhLakshadweepPuducherry
Key service locations: Mumbai, Navi Mumbai, Thane, Pune, Nagpur, Nashik, Ahmedabad, Surat, Vadodara, Jamnagar, Bengaluru, Hyderabad, Chennai, Visakhapatnam, Kochi, Mangaluru, Delhi NCR, Jaipur, Indore, Bhopal, Raipur, Kolkata, Paradip and project locations nationwide.
Rim Seal Fire Protection FAQs
What is a rim seal fire protection system?
It detects and controls a fire in the annular seal area between an external floating roof and tank shell.
Why is the rim seal area protected?
The area may contain flammable vapour near possible ignition sources and can be difficult to approach during a fire.
How does an automatic rim seal system operate?
Approved detection initiates alarm and release logic so foam or another approved agent is distributed into the protected zone.
Does rim seal protection replace full-surface tank firefighting?
No. Full-surface, bund and exposure scenarios require separate risk-based firefighting provisions.
How is foam concentrate selected for a rim seal system?
Selection depends on fuel, listing, application method, water quality, temperature, environmental requirements and adopted standard.
What maintenance does a rim seal system require?
Detection, controls, power, pressure, agent, valves, piping, discharge devices, corrosion and roof clearances require documented inspection and testing.
Do you provide rim seal fire protection across India?
Yes. We support enquiries from Mumbai across India, subject to site-specific engineering and approvals.
