Spark Detection and Extinguishing System

Industrial Spark Detector System

A spark detector is a high-speed fire prevention device designed to detect sparks, glowing embers or hot particles in ducts, conveyors, pneumatic transport systems and industrial processing lines before they cause an explosion or fire. A spark detection and extinguishing system detects ignition sources early and automatically suppresses them before they reach a dust collector, silo, filter or storage area.

Common Applications

Wood processing & MDF plants

Cement factories

Textile mills

Recycling plants

Biomass & pellet plants

Food processing (powder handling)

Types of Spark Detectors

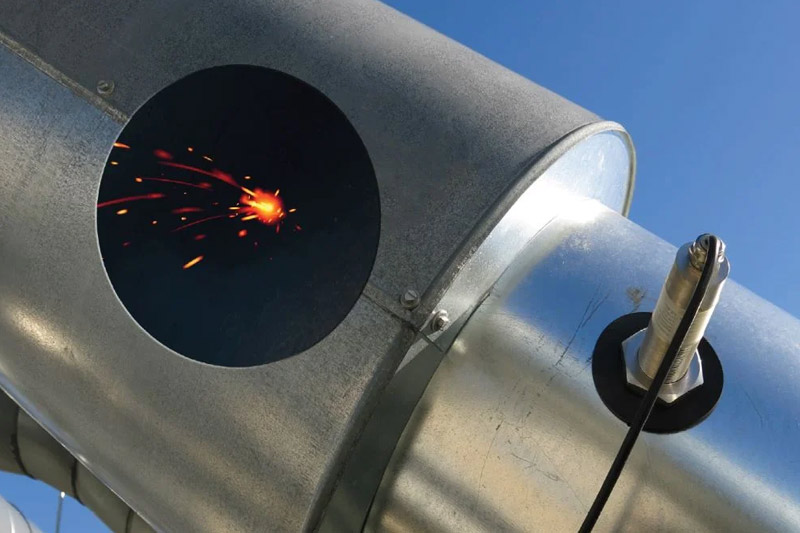

Infrared (IR) Spark Detector

Detects heat radiation from sparks

Works in dusty and dark environments

Most common industrial solution

Dual-Sensor Spark Detection

Two sensors for improved reliability

Reduces false alarms

Used in critical environments

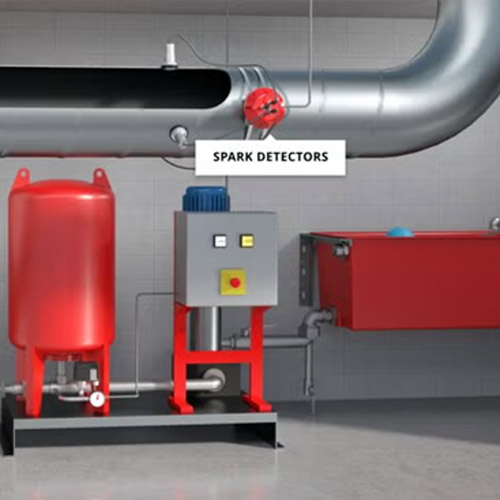

Spark Detection and Automatic Extinguishing System

IR detector

Control panel

Automatic water extinguishing unit

Alarm integration

Why Spark Detection Is Important

Dust explosion

Duct fire

Production shutdown

Severe damage

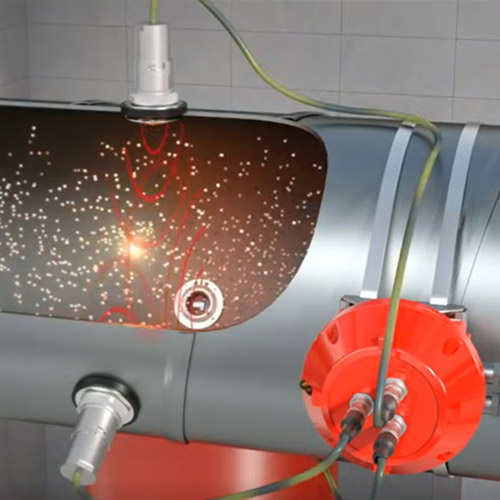

How Spark Detection and Extinguishing Works

• Detection: IR or dual-sensor spark detectors identify moving sparks and hot particles in ducts, conveyors or pneumatic conveying lines.
• Signal: The detector sends a fast alarm signal to the control panel for response logic.
• Extinguishing: Automatic water nozzles activate quickly to suppress the ignition source inside the process line.
• Integration: The system can trigger hooters, fire alarm inputs, machine shutdown, dampers and plant monitoring outputs.

This makes a spark detector system different from normal area fire detection. It acts before flame spread, smoke build-up or equipment damage becomes visible.

Key Components

• Infrared spark detectors for enclosed and dusty process lines
• Dual-sensor detectors for critical applications and reduced false alarms
• Control panel with alarm, fault and extinguishing outputs
• Automatic water extinguishing nozzles, valves and monitoring
• Testing, commissioning and maintenance support

System selection depends on duct size, conveyor speed, air velocity, material type, water availability, risk area and shutdown requirements.

Industries and Risk Areas

• Wood processing, saw mills, MDF and particle board plants
• Textile mills, cotton handling and fiber processing
• Cement, coal, biomass and pellet handling systems
• Recycling plants, shredding lines and waste processing
• Food powder handling, bag filters, cyclones and dust collectors

Spark Detector System in Mumbai, Maharashtra and India

Reliance Fire Protection Systems supports industrial spark detection and automatic extinguishing requirements in Mumbai, Navi Mumbai, Thane, Pune, Maharashtra and other project locations across India.

Our scope can include consultation, design support, supply, installation coordination, testing, commissioning and maintenance for spark detection and extinguishing systems.

Frequently Asked Questions

What is a spark detection and extinguishing system?

It is an industrial fire prevention system that detects sparks, hot particles or embers inside process lines and automatically extinguishes them before they reach a dust collector, silo, filter or other high-risk equipment.

Is a spark detector the same as a flame detector?

No. A flame detector usually detects an open flame in an area. A spark detector is designed to detect moving sparks or hot particles inside ducts, conveyors and enclosed industrial process lines before a fire develops.

Where are spark detector systems used?

Common applications include wood processing, MDF plants, textile mills, cement plants, biomass plants, recycling plants, food powder handling, dust collection systems and pneumatic conveying systems.

Can the system shut down machines automatically?

Yes. Based on the plant requirement, the control panel can be integrated with alarms, interlocks, machine shutdown, dampers and fire alarm systems.
